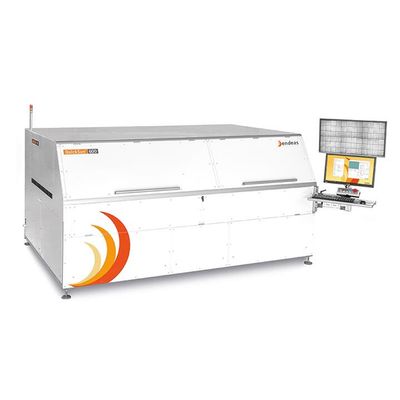

Endeas QuickSun - Model 600 -All-in-One Module Testing Station for the Mass Production of PV Modules
FromEndeas Oy
QuickSun 800-series Module Solar Simulators use Xenon flash tubes for simulating solar irradiation. Complete IV-characteristics are recorded during one flash at desired intensity level when module is swept electronically from short circuit to open circuit.
Most popular related searches
module solar simulator
photovoltaic testing system
solar simulation
bypass diode
photovoltaic testing
photovoltaic module
flashed solar simulator
photovoltaic
solar module
- Class A+A+A+ solar simulator; automatic EL and optical inspection; and hipot, ground continuity and bypass diode tests in a single, fully automated tool
- Accurate PERC, HJT and TOPCon testing with unique Capacitance Compensation (CAC) method
- Superior productivity: 150 – 200 modules per hour automatically processed
- Minimized factory footprint of 7 m²
- Low total cost of ownership
- Contacting J-Box / contact adapter; 4-wire / Kelvin
- Load Feedback controlled MOSFET Adjustable bias 0–4.5 V
- Voltage sweep Isc -> Voc, Voc -> Isc Capacitance Compensation (CAC) method
- Voltage measurement 1–100 V (other scales on request) Accuracy better than 0.2 %
- Current measurement 0.5–25 A (other scales on request) Accuracy better than 0.2 %
- Irradiance control 200–1200 W/m² Resolution 1 W/m²
- Pmp repeatability (Max-min)/(max+min) < 0.25 % Std. < 0.1 %
- Average flash tube lifetime 500 000 flashes
- EL image 40 MP Typ. exposure time 3–5 secs
- Hipot Max 6.5 kV 0.1 nA measurement sensitivity
- Ground Bond 0.2 mohm sensitivity
- Optical inspection 120 MP
- Operation temperature 15–35 ºC
- Mains utilities 3~, 400 Vac, 3 x 16 A, 50–60 Hz CDA 4–6 bar
- Total dimensions, weight 320 x 203 x 160 cm 900 kg
