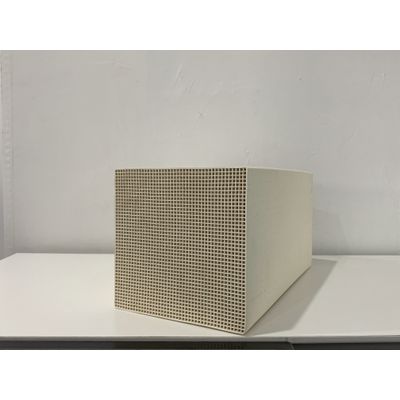

AREACH - Model 43*43 Cells -Cordierite Blocks
In order to improve the utilization of heat, a filling bodies in ceramic material can be set behind the RTO incinerator to enhance the utilization of waste heat.Cordierite block is applied as heat storage media (Monolith media) in regenerative thermal processes to recover thermal energy also it can resolves RTO siloxane clogs in someway. it picks up and release heat rapidly from the waste gas after combustion. Ceramic heat recovery beds capture and reuse up to 95% of the systems energy, resulting in low fuel cost. itMost popular related searches
waste gas combustion
waste gas
thermal energy
heat recovery
gas combustion
recovered energy
waste gas heat
siloxane monitoring
waste combustion
incineration
Cordierite Block Physical Property
Density :1.5-1.9G/CM3
water Absorption:15-25%
Coefficient of thermal expansion（20-800℃）≤ 3x10-6k -1
Specific Heat (20-1000℃): 900-1150J/Kg.K
Thermal Conductivity (20-1000℃):1.2-1.8W/m.k
impact thermal resistance≥350℃/Min
Strength （ A axis）≥29MPA
Compressive（ B axis）≥6
Material Chemical Composition
AL2O3/ Alumina Oxide:28-38%
SiO2 /Silicon Oxide :45-55%
MgO:11-14%
Others<5%
Lighter unit weight than other materials.
Whiter color than other materials.
Widely used in overseas markets.
Long service life.
Low maintenance costs.
High thermal shock resistance.
Less inland transportation costs.
Good Thermal Conductivity .
Good Thermal shock resistance .
