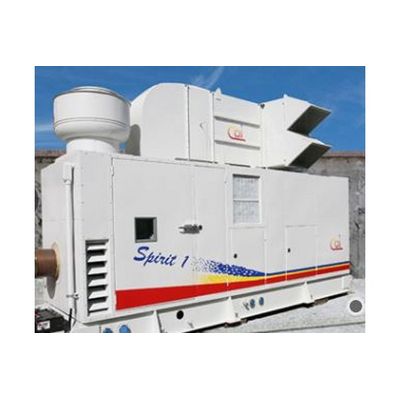

CAI - Model Spirit™ 1– 1 MW -Gas Turbine Power Generation System

Its components include turbine, industry proven gearbox, generator and auxiliary systems with state-of-the-art control and monitoring capabilities. The unique combination of hardware in 1 MW power plant results in excellent heat recovery performance of a turbine at a cost that is competitive with conventional reciprocating engine generating systems. Maintenance downtime is minimal.

In addition, the flexibility of the turbine’s combustion system allows it to operate on a variety of liquid and gaseous fuels such as natural gas, diesel oil, propane, and process and waste gases that are normally flared into the atmosphere.

Spirit 1 MW is also well suited for landfill gas applications where there is a use for recoverable heat or where high level of availability is important. Furthermore, Spirit 1 MW can be modified for cogeneration and Combined Heat and Power (CHP) applications. It is ideal for remote installations because of its plug-n-play feature, and it can also operate for longer periods between maintenance activities.

Spirit 1 MW is available both as a skid-mounted system or trailer-mounted package for easy integration into existing and new facilities.

The “Plug-n-Play” packaging enables easy transportation and reduces installation time and costs. Installing multiple smaller units gives added flexibility and higher availability of power during maintenance and overhauls.

• GENERAL DESCRIPTION :
• 1 MW gas turbine power generation system
• Continuous duty cycle
• Skid-mounted modular design
• GAS TURBINE : Honeywell T-53 Aeroderivative Gas Turbine
• FREQUENCY : 50 Hz & 60 Hz
• FUEL : Natural gas and diesel | Dual-fuel capable
• POWER ISO : 1.0 MW | 1,000 kW
• HEAT RATE : 15,222 Btu/kWh | 16,060 KJ/kWh
• THERMAL EFFICIENCY : 22.4%
• EXHAUST GAS FLOW : 13 lb/s |5.9 kg/s
• EXHAUST TEMPERATURE : 950° F | 510° C
• FUEL PRESSURE : 180 psi gas | 12.4 bar gas
• NOx EMISSIONS : ≤ 50 ppm
• MAJOR OVERHAUL : 24,000 OPH
• PACKAGE DIMENSIONS
• Length : 22 feet | 6.7 meters
• Width : 7 feet | 2.1 meters
• Height : 8 feet | 2.4 meters
• Weight : 24,000 lbs | 18,597 kg

The CAI Spirit 1MW (basic model) includes the following:

• Industrialized Gas Turbine Engine
• Reduction Gearbox and Coupling
• Synchronous Generator
• Natural Gas or Liquid Fuel System
• Lubrication System for the generator, gearbox, and turbine
• Electric Engine Starter
• Inlet Air Filtration System
• Inlet Air Silencer
• PLC Control System
• Motor Control Panel
• Exhaust Silence
• Sound Attenuated Enclosure
• Three Sets of Operation and Maintenance Manuals
• Factory Testing and Standard Warranty

• Available in 50 or 60 Hz configurations
• Containerized and modular design for easy install and operation
• Lightweight, small footprint, either for indoor or outdoor use
• Suitable for onshore and offshore use
• Fuel Flexibility – can operate on many fuels including dual fuel capability
• Trailer-mounted, mobile version available
• Longer time in-between overhauls
• Compact, integrated system that is completely self-contained
• Full Factory Acceptance Tested
• Remote monitoring capabilities
