Model T - Medium Head Turbine
From Medium Head Hydro Turbines

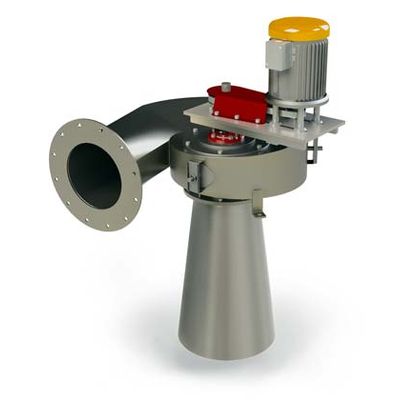

The Nautilus T Medium Head turbine has been manufactured for over 10 years. Many of these turbines are installed in the U.K. and the United States. The hydraulic design is based on a utility grade Francis turbine that is reduced in size and fitted with a trapezoidal section scroll case.
Products Details
This is an unregulated design. The turbine is turned on and off to match available flow with a butterfly valve installed in the penstock. Multiple units can be installed in parallel to match flow or the T-MH can be paired with a regulated CMC-MH to efficiently utilize lower flows. The Nautilus T-MH is fabricated from stainless steel and iron and designed to be bolted to a 12in penstock. It also comes fitted with a universal generator mounting plate. The T-MH is supplied with a standard 4 ft long draft tube so that it can be mounted above tail water without any head loss. This protects the turbine and generator from flooding. The T-MH can be installed on heads from 3.7m to 12m. Electrical power outputs range from 3,300 watts to 20 kW depending on head and flow.
Key Features:
- Regulation: Butterfly On/Off
- Runner Type: Francis
- Materials: 304 S.S., Mild Steel, Cast Iron, Bronze
- Head Range: 4ft (1.2m) to 42ft (12.8m)
- Flow Range: 3CFS (84l/s) to 9.7CFS (267l/s)
- Power Output: 650 watts to 22 kW
