Sciencetech - Model 125-9012 - Solar Reference Detector with Power Meter (SOL-METER - D)

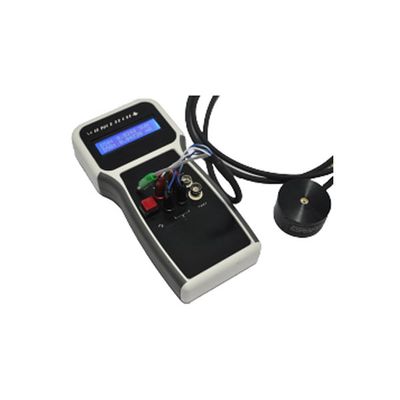

This product consists of the Sciencetech SOL-METER and our SSIVT-REF sun calibrated reference detector. The SOL-METER is a digital meter for use with solar calibrated detectors such as detector models SSIVT-REF or SC-LT. The meter converts detector measurements to a Sun value. It has a handheld meter that is compact, has a sturdy design, and is appropriate for indoor or outdoor applications.
The Sciencetech Reference Detector, which is an integral part of solar simulator calibration and solar cell I-V characterization, consists of a calibrated solar detector made of silicon.
The Reference Detector comes with calibration data taken by Sciencetech, calibrating it to a NIST-certified solar cell, on an accompanying certificate. It reads solar simulator irradiance in "sun" units; one sun is equal to 1,000 W/m^2, at 25 degrees Celsius and Air Mass 1.5 Global.
This tool`s primary use is the testing of photovoltaic cells under standard conditions.
- Name : (SOL-METER - D) Solar Reference Detector with Power Meter
- SKU : 125-9012
- Spectral Region : NIR, UV, Visible
- Detector Material : UV Enhanced Silicon (UV-Si)
- NEP : < 8.1E-15 W/Hz½
- Active Area (diameter or square) : 2.5mm
- Temperature Control : Non-cooled
- Spectral Range (nm) : 180-1100 nm
- AC or DC Coupling : DC Coupled
- Single or Multichannel : Single
- Responsivity : @200nm 0.12 A/W Typical (0.10 minimum), Peak @960nm 0.5A/W
- Detectivity (cm-Hz^1/2/W) : N/A
- Horizontal Pixel Range : No
- Detector Type : Solid State
