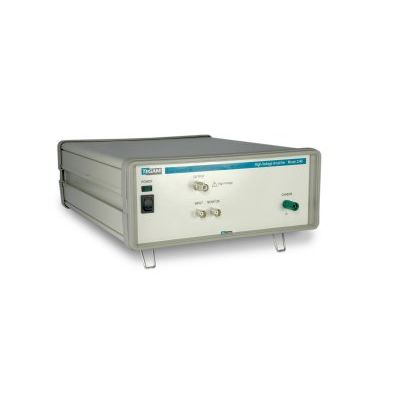

The Model 2340 High Voltage Amplifier expands the amplitude range of any standard function, pulse or waveform generator to 400 Vp-p. There is also a special high impedance input option for DAC boards. The DC coupled design enables combined DC and AC wave forms for greatest flexibility in test applications.  The response and gain are calibrated for a faithful reproduction of the test signal.  The output current is rated at 40 mA continuous with a 0.2 ? output impedance. Each channel has an independent, buffered, voltage monitor output for applications that require a low-level representation of the output signal. The buffers produce a reduction of 200:1 for 50 ? inputs and 100:1 for 1 M? and above inputs. A current limiting function senses the current in either direction providing maximum protection to the amplifier during operation.
